How to Restore Historic Masonry: A Step-by-Step Guide

Table of Contents

• Assessing Your Historic Masonry for Deterioration Common causes of historic masonry deterioration Evaluating structural integrity


  • Common causes of historic masonry deterioration

  • Evaluating structural integrity

• Historic Masonry Repointing Techniques Repointing vs. tuckpointing: which method to use Mortar analysis and matching color and texture


  • Repointing vs. tuckpointing: which method to use

  • Mortar analysis and matching color and texture

• Masonry Restoration Tools and Materials Selecting lime-based vs. Portland cement mortar Essential tools for cleaning and repair work


  • Selecting lime-based vs. Portland cement mortar

  • Essential tools for cleaning and repair work

• Cleaning Historic Masonry Safely Abrasive vs. chemical cleaning methods Protecting the masonry substrate during cleaning


  • Abrasive vs. chemical cleaning methods

  • Protecting the masonry substrate during cleaning

• Replacing Damaged Masonry Units and Patching When to patch with cementitious materials Addressing spalling and hairline cracks


  • When to patch with cementitious materials

  • Addressing spalling and hairline cracks

• Complying with Secretary of the Interior's Standards for Rehabilitation Permitting and regulatory compliance requirements Historic preservation standards and best practices


  • Permitting and regulatory compliance requirements

  • Historic preservation standards and best practices

• Moisture Management and Long-Term Maintenance Preventing moisture infiltration and efflorescence Creating a sustainable maintenance schedule


  • Preventing moisture infiltration and efflorescence

  • Creating a sustainable maintenance schedule

• DIY vs. Professional Restoration: When to Call an Expert

Last Updated: August 19, 2026

Assessing Your Historic Masonry for Deterioration

Historic masonry restoration begins with identifying specific problems affecting brick, stone, and mortar joints. This assessment determines whether you're dealing with cosmetic damage or structural failure.

Common causes of historic masonry deterioration

Water infiltration is the primary culprit. Historic buildings lack modern waterproofing. When water enters through failed mortar joints, it freezes in winter, expands, and fractures material from inside. This freeze-thaw cycle is relentless in northern climates.

Incompatible mortar accelerates deterioration. Many older buildings were repointed with Portland cement mortar, a hard material that bonds too strongly to softer historic brick. When thermal expansion occurs, the brick spalls or cracks instead of the mortar. Matching mortar composition during restoration is non-negotiable.

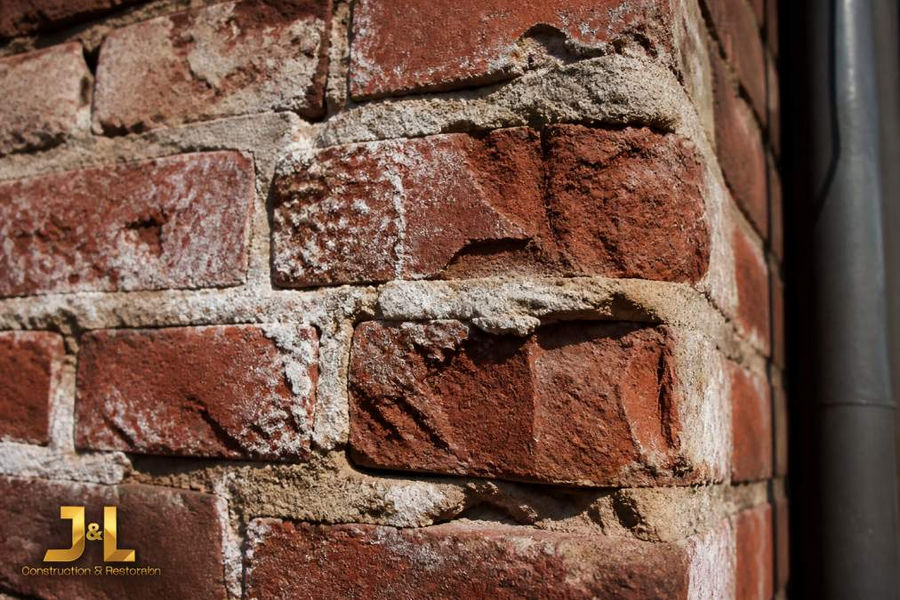

Efflorescence signals moisture movement. White, powdery salt deposits indicate water is moving through masonry where it shouldn't be. While efflorescence itself isn't destructive, it indicates an underlying moisture problem.

Spalling brick occurs when moisture trapped inside expands faster than the surface can accommodate. The outer layer pops off, exposing softer interior. Once spalling begins, it accelerates unless you address the underlying moisture problem.

Settlement and structural movement create diagonal cracks. Historic buildings shift over time as foundations settle and wooden elements twist. Growing cracks indicate active deterioration; stable cracks give you time to plan carefully.

Evaluating structural integrity

Map cracks with chalk, photograph them, and date the images. Return in three months and photograph again to determine if damage is active or stable.

Check for bulging or bowing masonry by standing back and looking along the wall's length. Bowing indicates pressure from failed internal ties or structural decay, requiring professional assessment.

Test mortar joints with a cold chisel. If mortar crumbles easily, joints need repointing. If the chisel bounces off, mortar is still competent. Probe brick with a screwdriver, if the tool penetrates easily, brick has deteriorated and may need replacement.

Look for biological growth (moss, lichen, algae), which indicates persistent moisture and signals that moisture management needs attention.

Historic Masonry Repointing Techniques

Repointing is the most common restoration work. Done wrong, it damages historic masonry. Done right, it extends building life by decades.

Repointing vs. tuckpointing: which method to use

Repointing removes failed mortar joints completely and refills them with new mortar. This restores structural integrity and weather resistance. Use repointing when mortar joints are genuinely failed, crumbling when tested, allowing water infiltration, or showing significant erosion.

Tuckpointing is a finishing technique applied after repointing. A thin line of contrasting mortar is applied into a shallow groove at the joint's center, creating a visual line that emphasizes the joint pattern. Tuckpointing is purely aesthetic and optional.

Mortar analysis and matching color and texture

You cannot guess at mortar composition. Historic buildings used lime-based mortars with specific ratios of lime, sand, and additives. Before repointing, have a mortar sample analyzed by a lab specializing in historic preservation. The analysis reveals the lime-to-sand ratio, sand type, and any additives.

Color matching requires more than visual comparison. Historic mortars often contained local sand, giving them regional character. Request samples of proposed mortar from your contractor before full-scale repointing begins. Texture also matters, match the original joint profile exactly. Incompatible mortar is the single most destructive mistake in historic masonry restoration.

Masonry Restoration Tools and Materials

Historic masonry is brittle and unforgiving. Poor tools lead to damaged brick, failed joints, and expensive mistakes.

Selecting lime-based vs. Portland cement mortar

Lime-based mortar is the correct choice for historic masonry. Historic buildings were constructed with lime mortar, which is softer, more breathable, and more flexible than Portland cement. Lime mortar allows water vapor to pass through, preventing moisture accumulation inside brick. It also fails first when movement occurs, protecting the more valuable brick from damage.

Portland cement mortar is harder and stronger but wrong for historic restoration. It bonds too tightly to historic brick, preventing moisture movement. When thermal expansion occurs, brick fails instead of mortar. Portland cement also traps moisture inside, accelerating deterioration.

Specify lime-based mortar by asking for NHL (Natural Hydraulic Lime) mortars or traditional lime mortars formulated for historic restoration.

Essential tools for cleaning and repair work

Pointing trowels come in various widths matching joint size (typically 3/8 to 1 inch). Quality matters, a cheap trowel smears mortar instead of placing it cleanly.

Cold chisels and plugging chisels remove failed mortar without damaging brick. Never use power chisels on historic masonry; vibration damages the brick.

Raking tools remove mortar from joints without damaging brick. A mortar rake follows the joint line, slower than power tools but preserving the brick surface.

Brushes and soft scrapers clean joints after mortar removal. Stainless steel brushes are gentler than carbon steel.

Spray equipment dampens joints before repointing to prevent brick from drawing moisture from new mortar too quickly. Use a garden sprayer, never a pressure washer.

Scaffolding or stable work platforms are essential. Never work from ladders; you need both hands free and stable footing.

Cleaning Historic Masonry Safely

Cleaning historic masonry is deceptively difficult. Aggressive methods damage the surface.

Abrasive vs. chemical cleaning methods

Abrasive cleaning (sandblasting, grit blasting) removes the outer surface layer of brick. Historic brick is often soft and porous. Once you remove the weathered layer, you expose softer material underneath that deteriorates quickly. Abrasive cleaning should be avoided entirely on historic masonry.

Chemical cleaning uses acid or alkaline solutions to dissolve deposits without abrading the surface. Muriatic acid removes efflorescence and mortar smears. Alkaline cleaners work for biological growth and staining. Chemical cleaning preserves the brick surface.

Biological growth responds well to gentle brushing combined with low-pressure water spray.

Protecting the masonry substrate during cleaning

Wet the masonry thoroughly before applying any cleaning solution. Dry brick absorbs liquid rapidly, concentrating the chemical effect. Pre-wetting fills pores with water so the solution sits on the surface rather than penetrating deeply.

Apply cleaning solutions conservatively. Spray or brush the solution onto the surface, let it work briefly, then rinse thoroughly with low-pressure water.

Rinse completely. Residual chemicals continue to react and can cause efflorescence or salt damage weeks after cleaning.

Avoid acidic cleaners on limestone or marble. Use alkaline or pH-neutral cleaners instead.

CONTACT US →

Test any cleaning method on a small, inconspicuous area first. Different brick types respond differently to the same cleaner.

Replacing Damaged Masonry Units and Patching

Sometimes individual brick or stone units are too damaged to repair. Replacement is necessary to maintain the building's historic character.

When to patch with cementitious materials

Patching is appropriate when damage is limited to the brick or stone surface. Small spalls, chips, or weathered areas can be filled with patching mortar matching the surrounding material. Use lime-based patching mortars formulated for historic restoration. The patch should be slightly recessed rather than flush or raised, helping it blend visually and preventing water from pooling.

Patching extends the life of damaged units but extensive spalling requires brick replacement.

Addressing spalling and hairline cracks

Spalling brick has lost its outer surface layer. Small spalls can be patched; extensive spalling requires brick replacement. To replace a spalled brick, carefully remove mortar around all four sides, then gently work the brick free using a cold chisel and hammer. Chip away mortar gradually rather than striking hard blows that shock surrounding brick. Clean mortar from the cavity and set the new brick (matching the original as closely as possible) in fresh lime mortar.

Hairline cracks in brick or stone are common and often stable. Monitor them over time. If they don't grow, they're cosmetic and can be left alone or sealed with flexible masonry sealant. If cracks are actively growing or accompanied by other movement signs, seek structural assessment.

Complying with Secretary of the Interior's Standards for Rehabilitation

If your building is listed on the National Register of Historic Places or if you're seeking historic preservation tax credits, your restoration work must comply with the Secretary of the Interior's Standards for Rehabilitation.

Permitting and regulatory compliance requirements

Check with your local historic preservation commission or state historic preservation office before beginning work. Many jurisdictions require permits for exterior work on historic buildings and design review before work begins.

The Secretary of the Interior's Standards emphasize preservation of historic materials and features. The standards generally require that you repair rather than replace, using materials and techniques compatible with original construction. Documentation is essential, photograph your building before, during, and after restoration and keep records of materials used, contractors hired, and work performed.

Historic preservation standards and best practices

A building's historic character-defining features shall be retained and preserved. Identify what makes your building historically significant and prioritize preserving distinctive architectural details, original materials, and building form.

Historic materials and features shall be retained and repaired rather than replaced when possible. Repointing is preferred to replacement; patching is preferred to wholesale brick replacement.

Deteriorated historic features shall be repaired using materials and techniques compatible with the original. When historic materials are beyond repair, replacement should match the original as closely as possible. Work with preservation professionals, architects experienced in historic restoration, conservators trained in masonry preservation, and contractors skilled in traditional techniques.

Moisture Management and Long-Term Maintenance

Historic masonry restoration isn't a one-time project. How you manage moisture determines whether your investment lasts 20 years or 100 years.

Preventing moisture infiltration and efflorescence

Ensure proper drainage around the building. Grade should slope away from the foundation. Gutters and downspouts should direct roof water away from masonry.

Avoid modern waterproof coatings. Sealing historic masonry with waterproof paints traps moisture inside the brick. Historic masonry is designed to be breathable. Waterproof coatings prevent evaporation, causing moisture to accumulate inside where it causes efflorescence, spalling, and structural damage.

Repair failed roof systems promptly. Roof leaks are the most common source of moisture infiltration. Address interior moisture sources, bathrooms, kitchens, and laundries generate humidity and must be properly ventilated to the exterior.

Efflorescence is a symptom, not a disease. If white deposits appear after restoration, moisture is still moving through the wall. Identify and fix the moisture source. Once eliminated, efflorescence will gradually disappear.

Creating a sustainable maintenance schedule

Inspect mortar joints annually. Look for cracks, erosion, or separation between mortar and brick. Small problems caught early are inexpensive to fix.

Repoint failed joints promptly. Failed joints should be repointed within a year or two of failure, before surrounding brick is damaged.

Monitor brick for spalling. Early spalls can be patched; extensive spalling requires replacement.

Keep gutters and downspouts clean and functional. Clogged gutters cause water to overflow and run down masonry.

Avoid aggressive cleaning. Once your building is clean, gentle maintenance cleaning with soft brushes and low-pressure water is sufficient.

Document your work. Keep records of all maintenance and repairs with photographs.

DIY vs. Professional Restoration: When to Call an Expert

DIY appropriate work includes:

• Cleaning with soft brushes and low-pressure water

• Monitoring cracks and documenting changes

• Routine maintenance (gutter cleaning, downspout inspection)

• Removing vegetation from masonry surfaces

• Patching small surface spalls with appropriate mortar

Professional work includes:

• Mortar analysis and matching

• Repointing (especially on visible facades or large areas)

• Brick replacement

• Structural assessment of cracks or movement

• Work on buildings with historic designation or tax credit implications

• Chemical cleaning or specialized cleaning techniques

• Waterproofing or moisture management solutions

The cost difference between hiring a professional and fixing a DIY mistake is substantial. A repointing job done with wrong mortar can damage the building for decades. Aggressive cleaning removes the weathered surface layer that protects brick underneath.

If you're uncertain about any aspect of your project, whether damage is structural, what mortar composition is appropriate, whether your building qualifies for historic preservation tax credits, or whether a repair approach meets preservation standards, consult a professional.

---

Historic masonry restoration demands precision, patience, and respect for the building's original construction. The techniques and materials you choose determine whether your investment protects the building for the next 50 years or creates problems that compound over time. J&L Construction & Restoration brings two decades of experience in masonry restoration, structural assessment, and historic preservation to every project. If you're planning restoration work, contact us for a consultation and estimate. We'll assess your building's condition, recommend the right approach, and execute the work to preservation standards that protect your investment.

Frequently Asked Questions

What are the common causes of historic masonry deterioration?

Historic masonry deteriorates from moisture infiltration, freeze-thaw cycles, efflorescence (salt deposits), spalling from failed mortar, and thermal expansion stress. Poor drainage, incompatible Portland cement mortar on lime-based masonry, and weathering over decades all accelerate breakdown. Identifying the root cause is essential before restoration, as treating only the symptom leads to failure. Professional assessment determines whether the issue is moisture, structural movement, or material incompatibility.

How do I know if I need repointing or tuckpointing?

Repointing removes deteriorated mortar joints and replaces them with new mortar, restoring structural integrity and breathability. Tuckpointing is a cosmetic technique that fills shallow cracks with mortar, then adds a contrasting line to simulate tight joints. Use repointing when mortar is crumbling or missing, causing moisture infiltration or structural weakness. Tuckpointing is appropriate only for minor surface cracks in otherwise sound masonry. Historic preservation standards typically require repointing to match original mortar composition and joint profile.

What is the difference between lime-based mortar and Portland cement?

Lime-based mortar is softer, more breathable, and flexible, making it ideal for historic masonry that needs to accommodate thermal expansion and moisture movement. Portland cement is harder and less permeable, which can trap water inside historic brick and cause spalling. Historic masonry was built with lime mortar; using Portland cement violates the Secretary of the Interior's Standards for Rehabilitation and causes long-term damage. Always match the original mortar composition when restoring historic masonry to preserve structural integrity and building envelope performance.

When should I hire a professional instead of attempting restoration myself?

DIY work is appropriate for minor cleaning, monitoring cracks, or small cosmetic repairs on non-structural areas. Hire a professional for repointing, structural assessment, historic preservation compliance, or any work affecting the building envelope. Professionals have mortar analysis equipment, understand heritage conservation standards, and know permitting requirements. Mistakes in repointing or structural stabilization are expensive to fix and can damage historic fabric irreversibly. Professional contractors ensure work meets the Secretary of the Interior's Standards and local historic district guidelines.
